Step Stool
This step stool was built to be a life long heavy duty step stool, capable of supporting more weight than I could ever put on it. It was constructed with 3/4” solid Oak with angled mortice and tenon joints, finished with several coats of clear satin polyurethane.

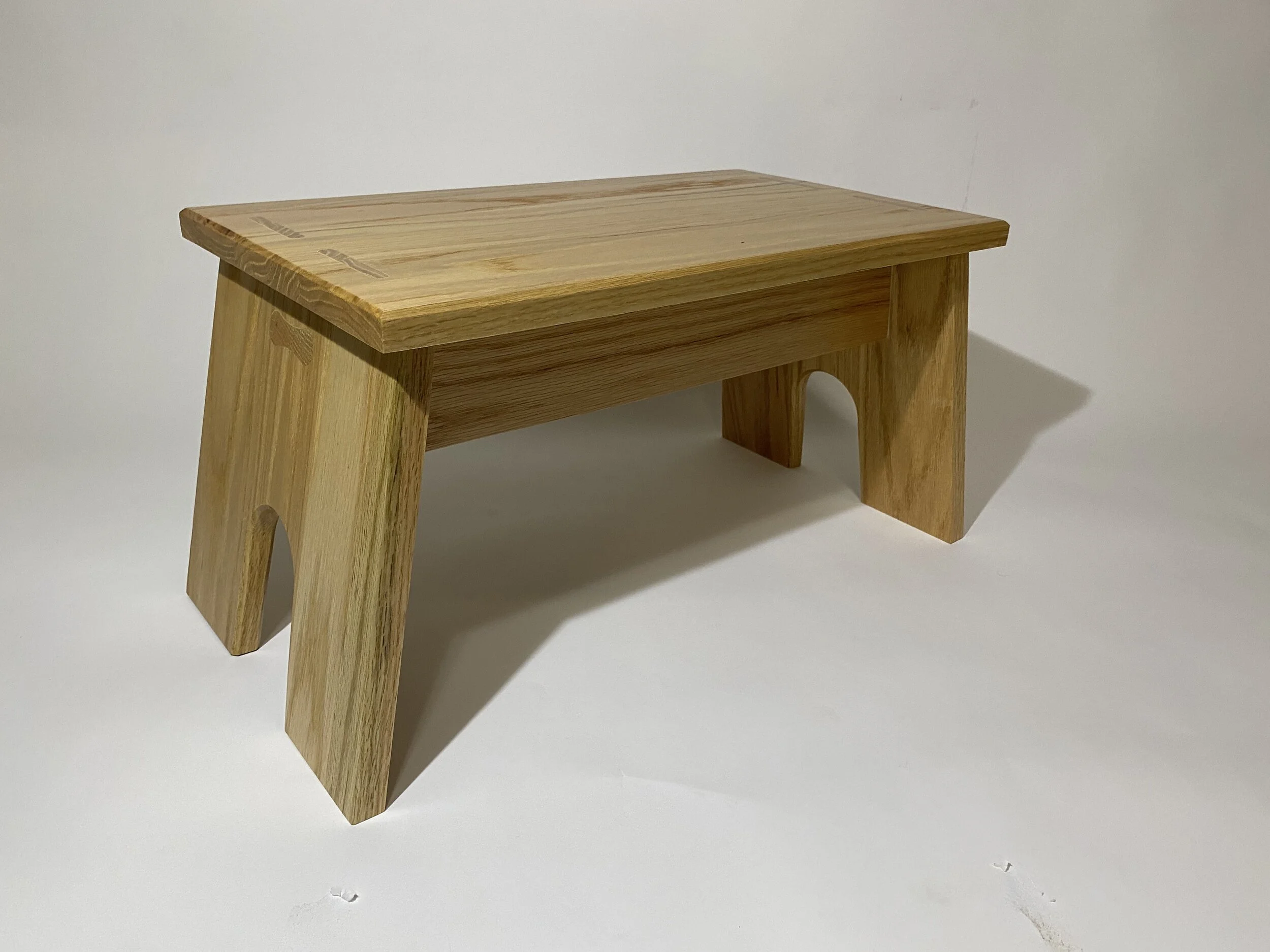

Completed Step Stool

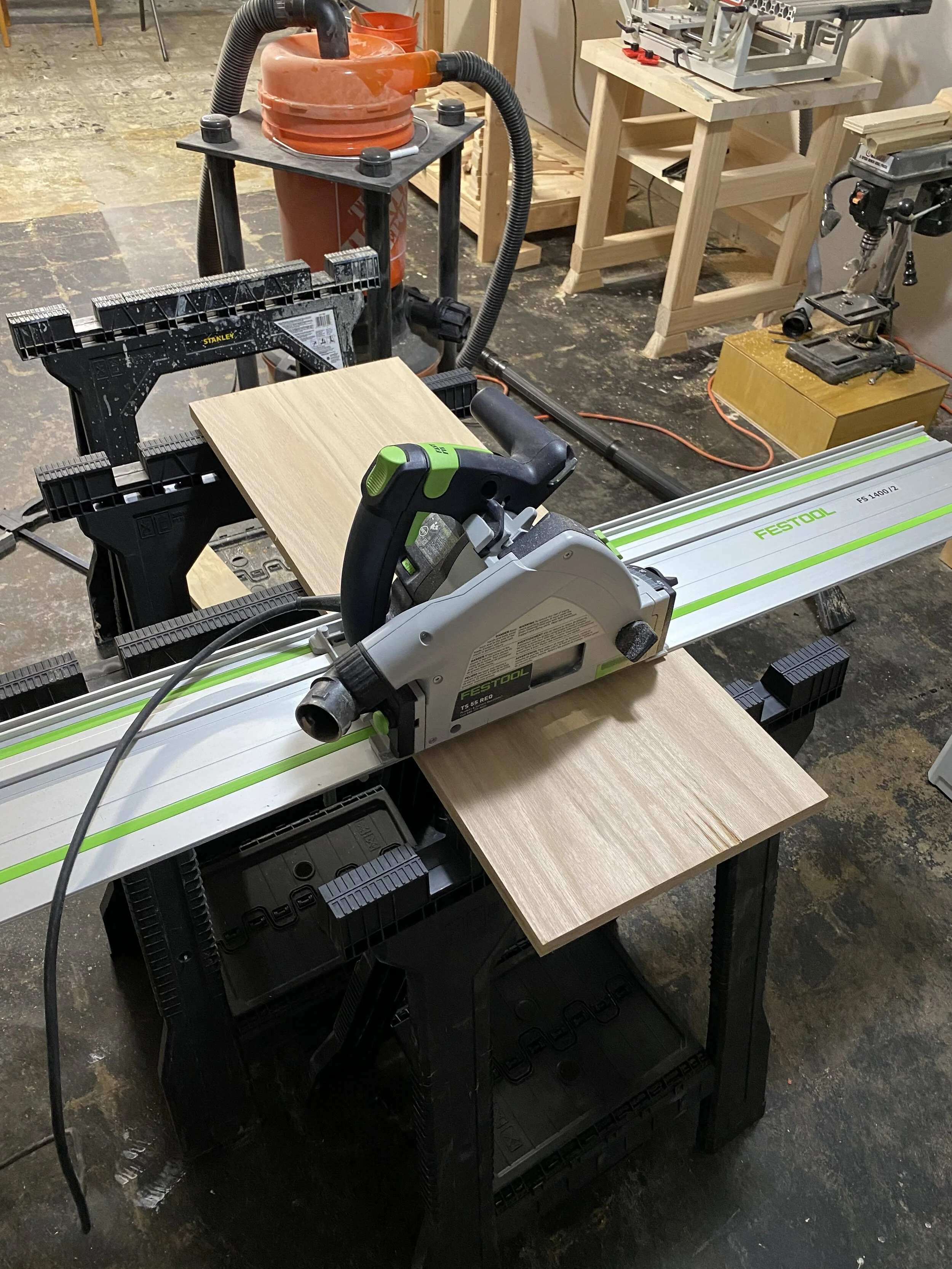

First step, cutting down oak boards

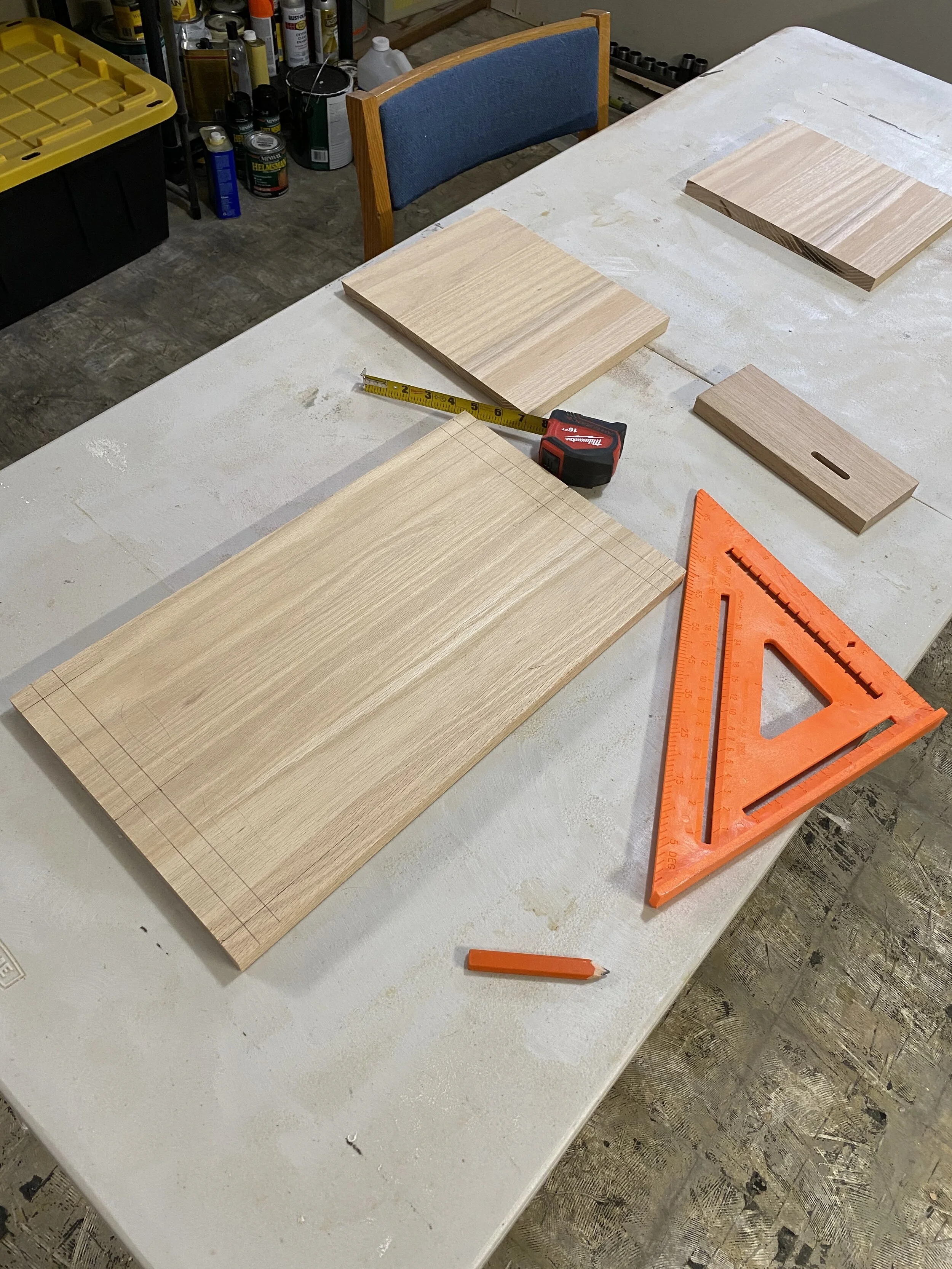

Laying out lines for mortices

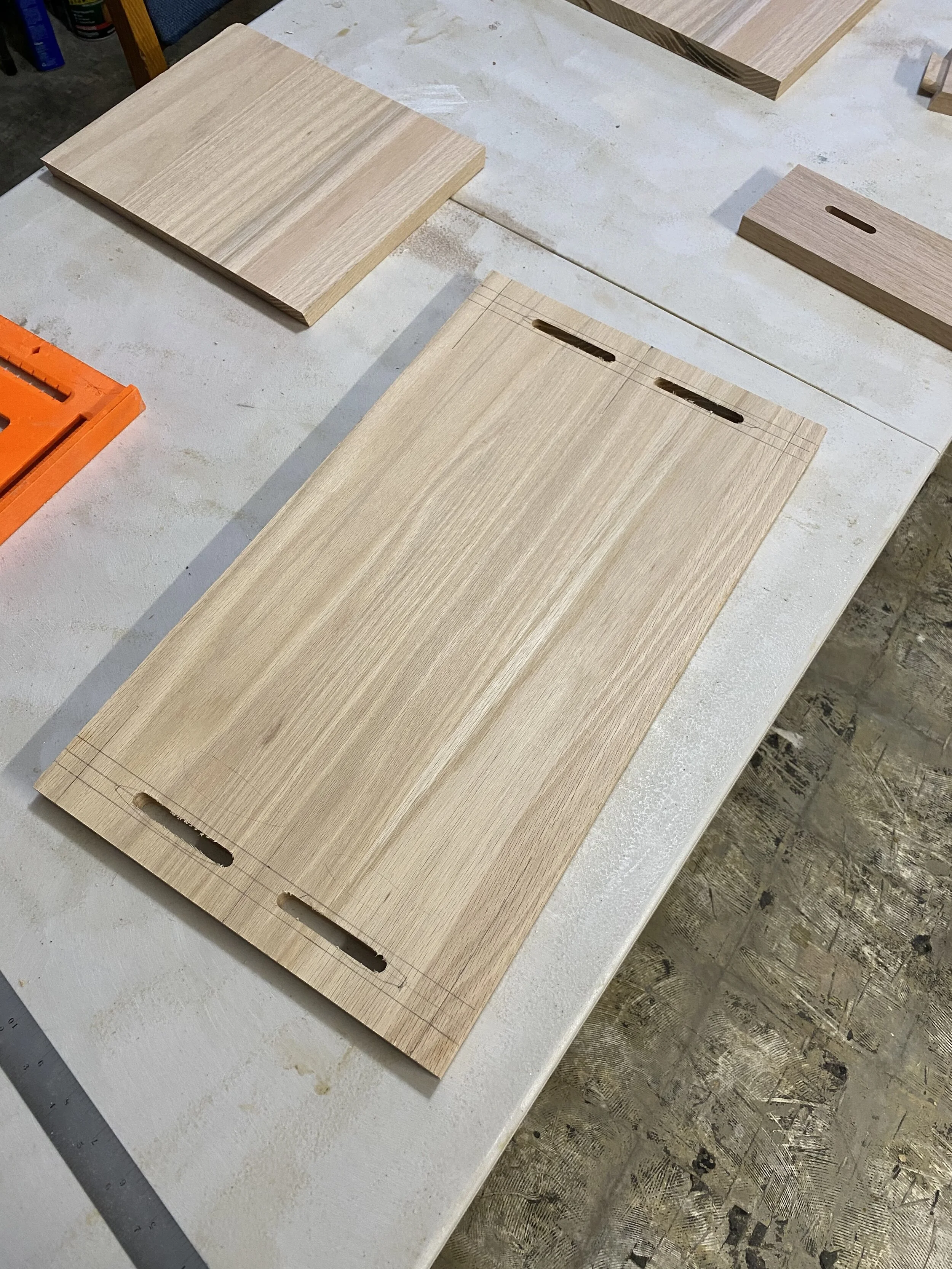

Mortices cuts
Test fitting 10 degree tenons for the legs with scrap wood
Lots of sawdust from milling...

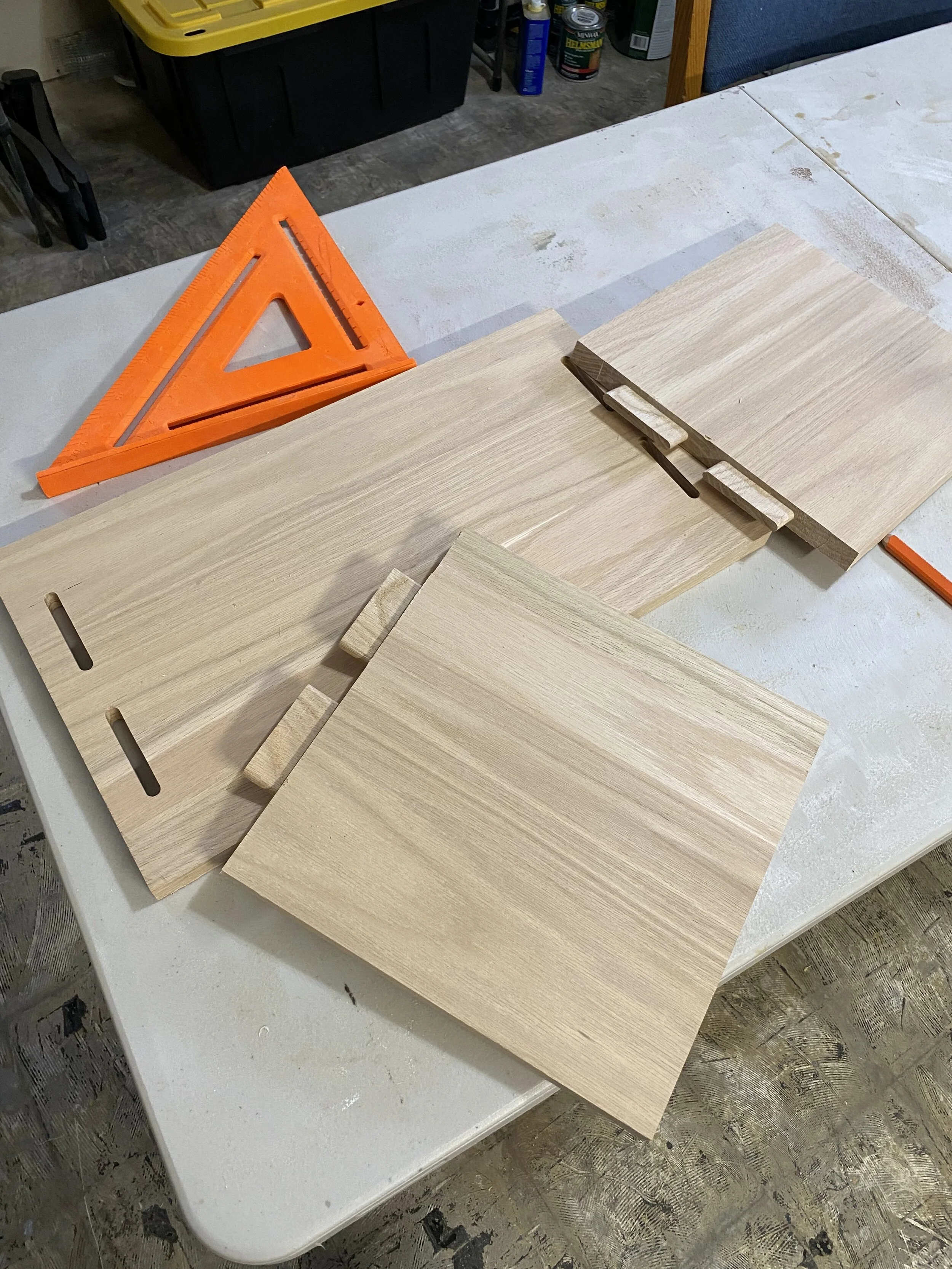

Base ready to assemble

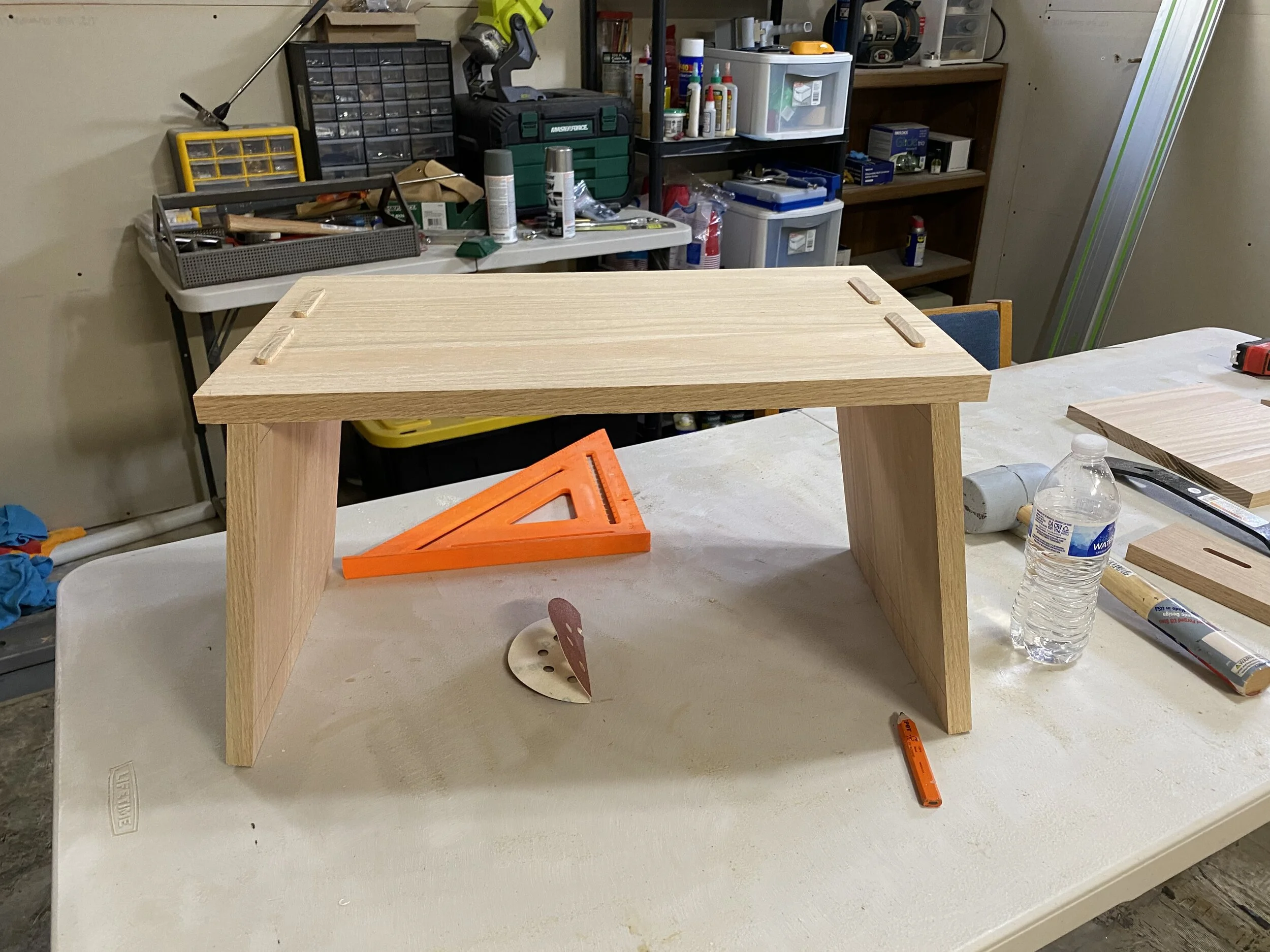

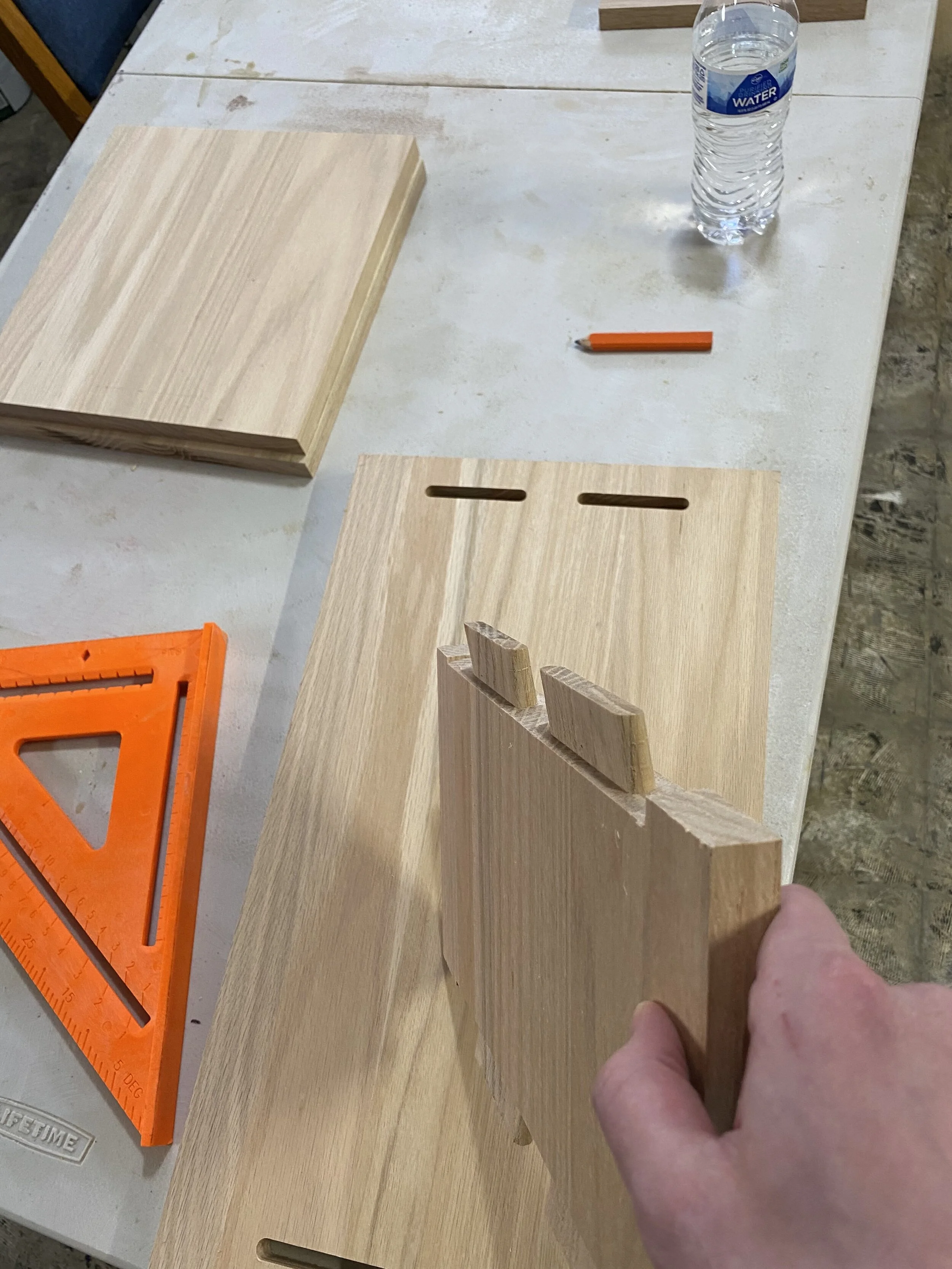

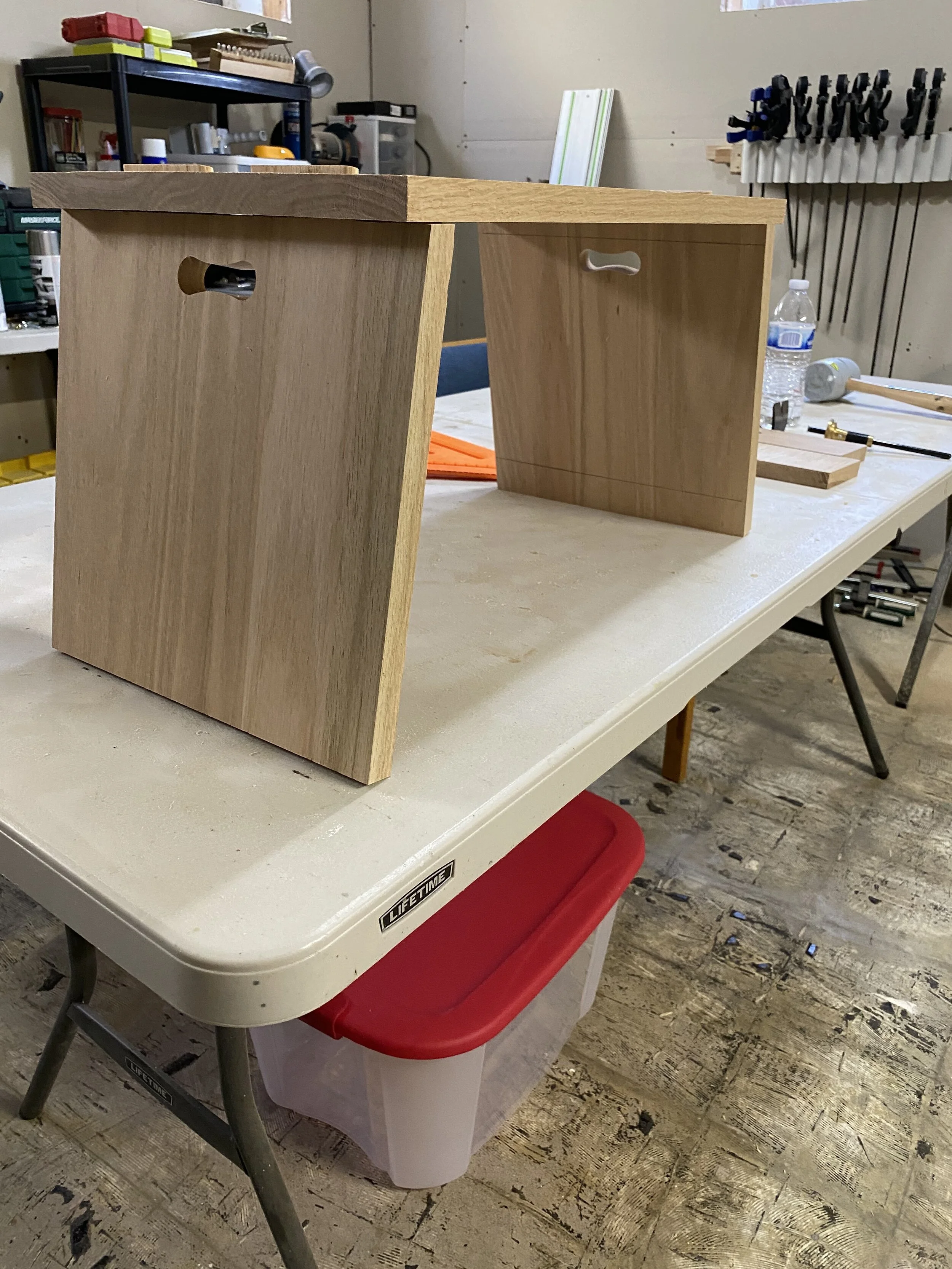

Dry fitting base and checking accuracy
Bowtie mortises added to legs for a center support beam

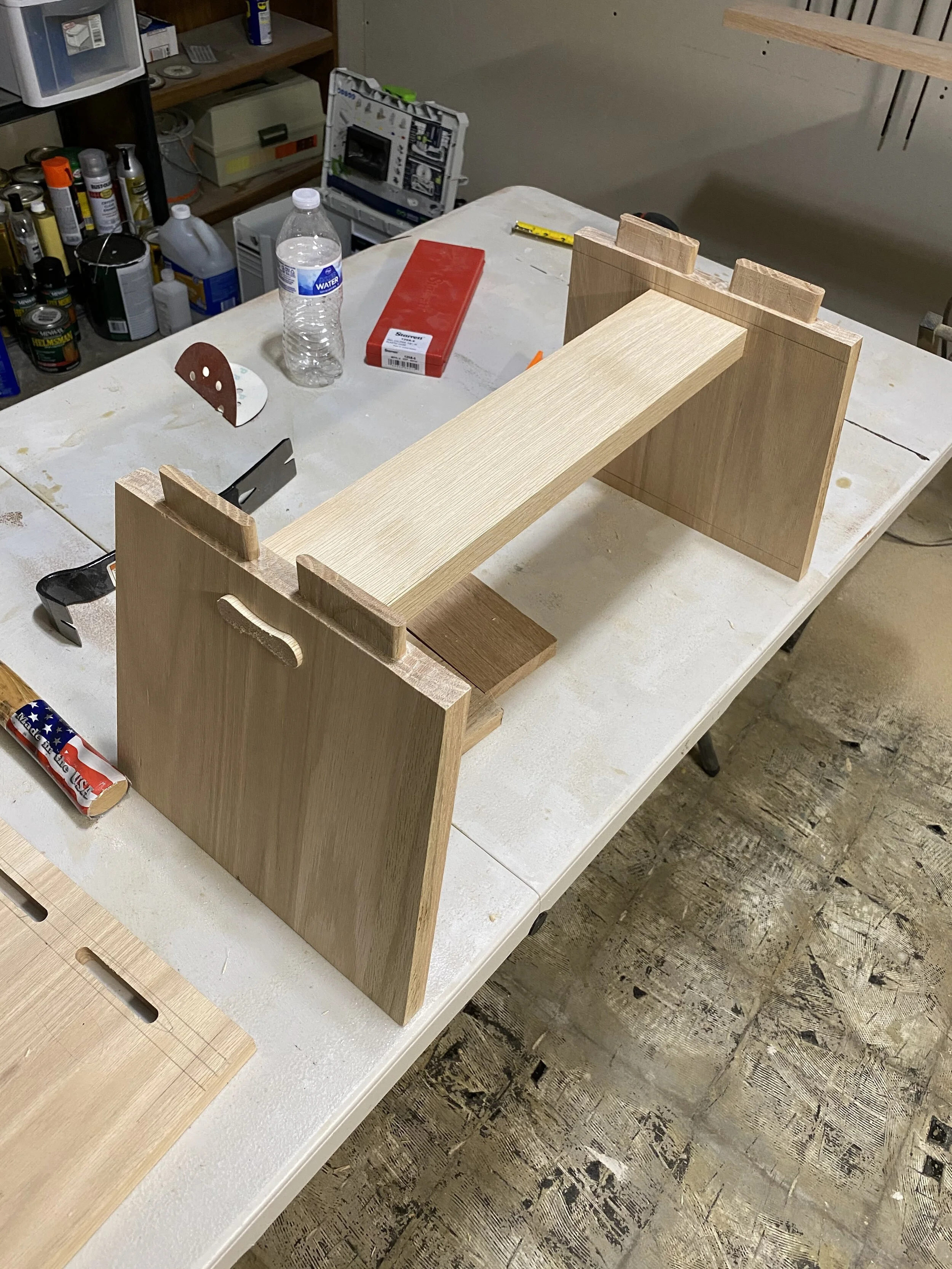

Center support beam with 10 degree bowtie tenons

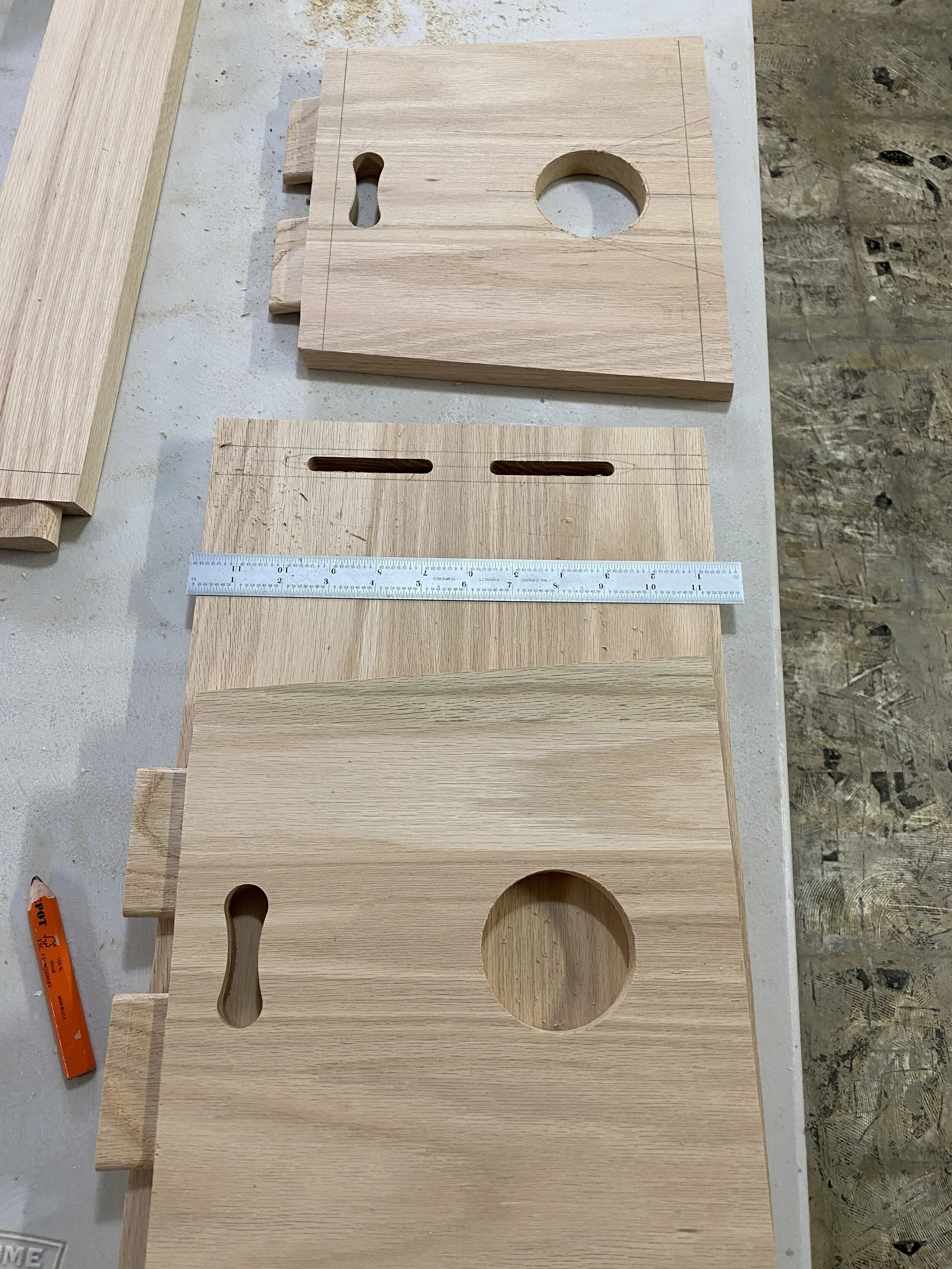

Pre-assembly pieces laid out and ready for finish sanding after drilling leg holes

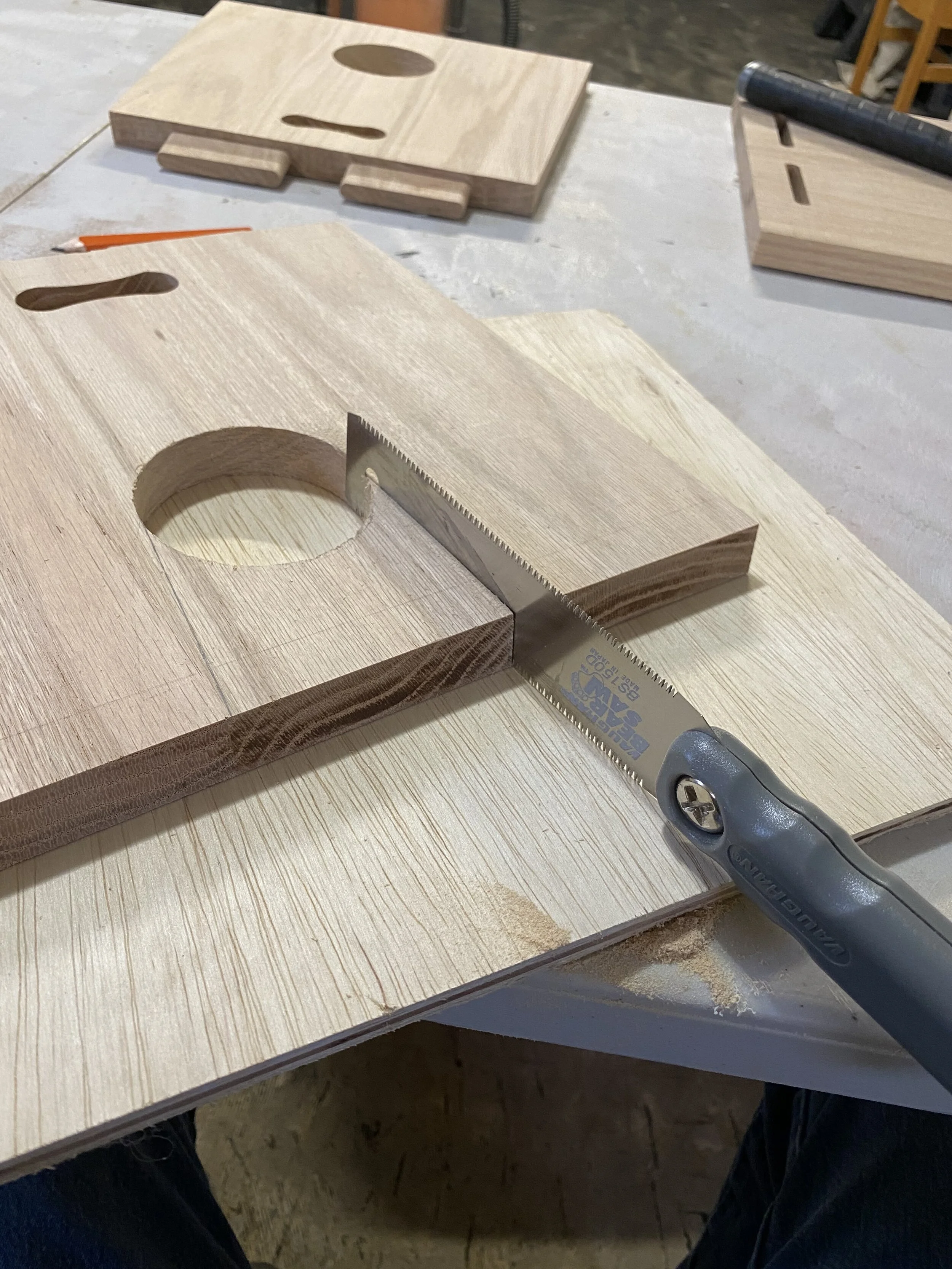

Hand cutting this section out for more stability

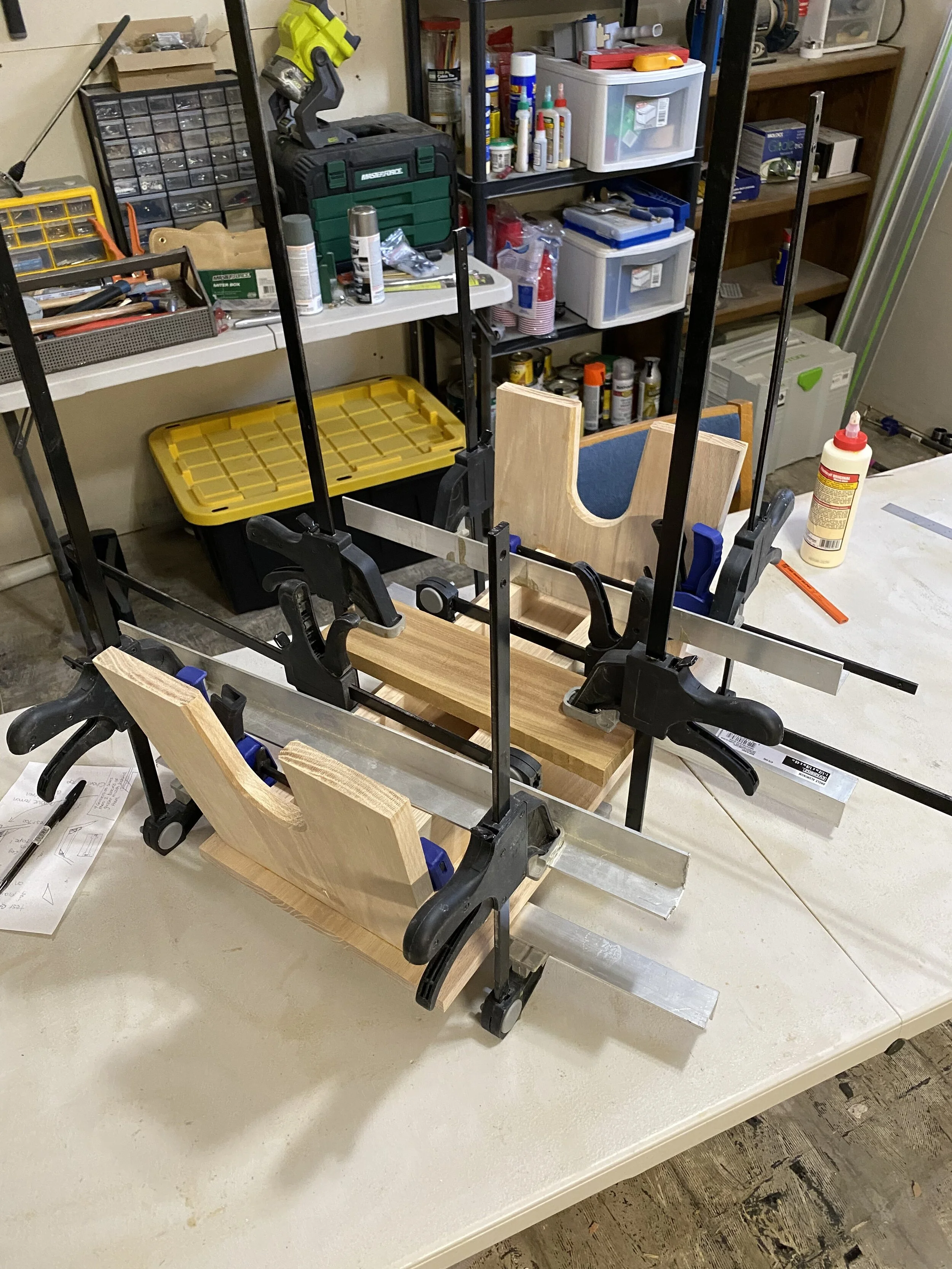

Glue up process

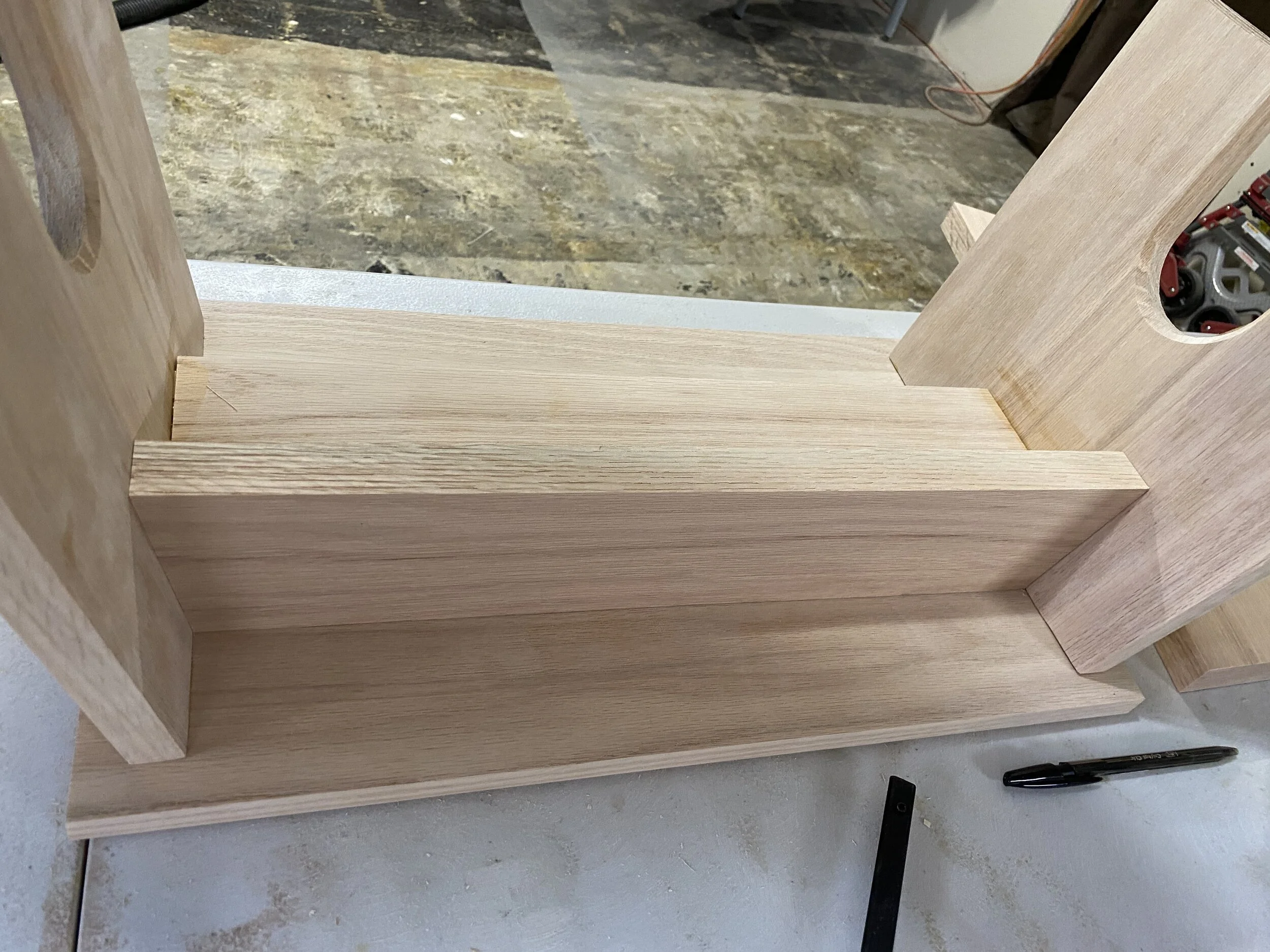

Adding two more center support beams to support even more weight

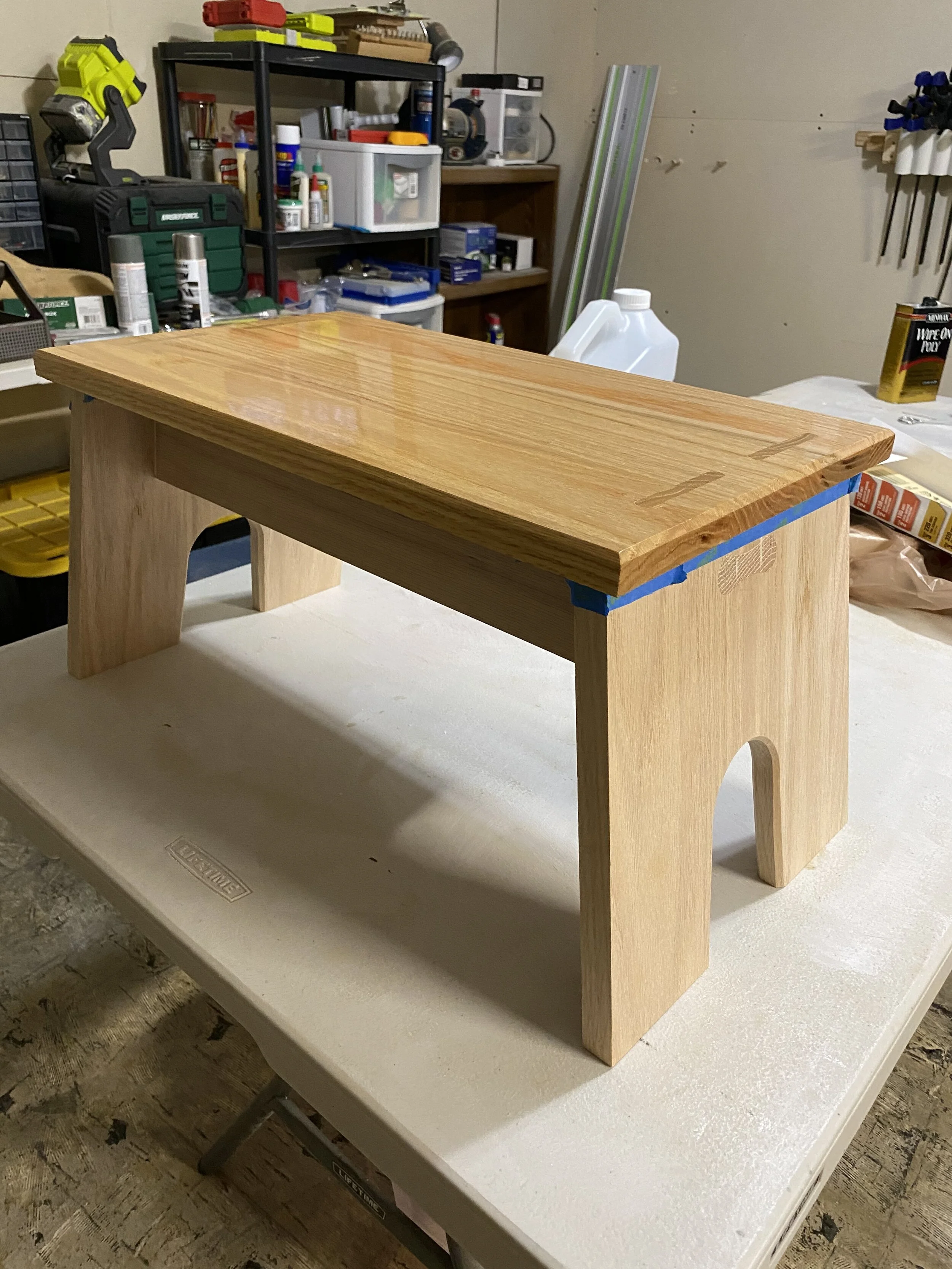

Assembled, glued, and sanded, in process of top coat

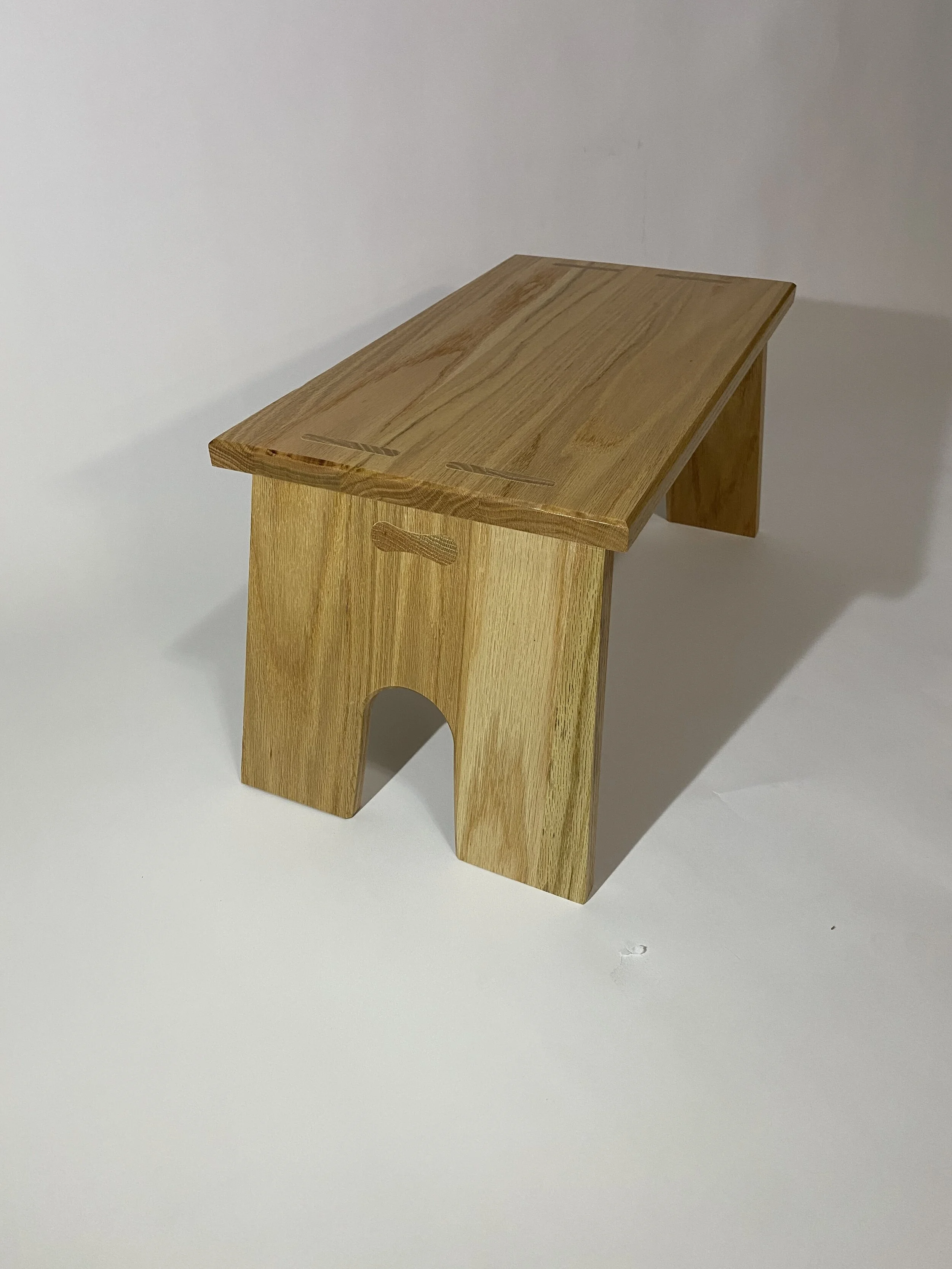

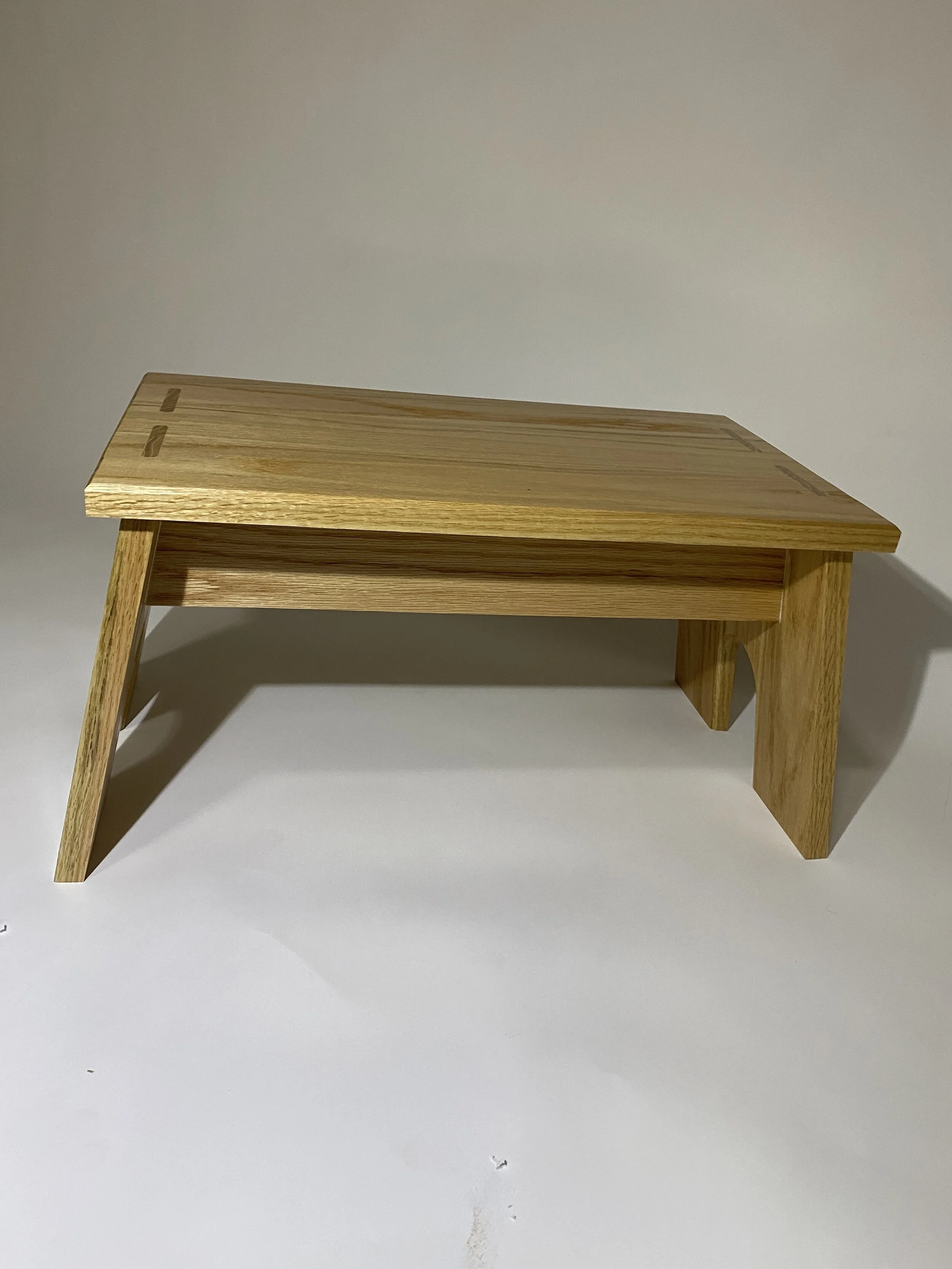

Completed step stool
Completed step stool
